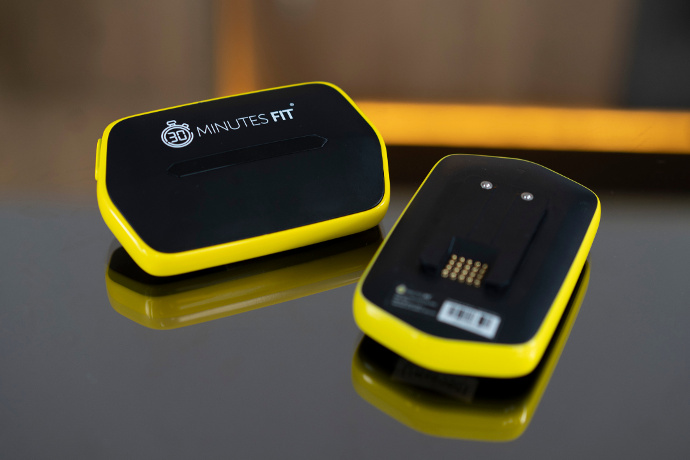

eBrain®
eBrain® is the device that receives the Bluetooth signal from the 30 Minutes Fit® App, installed on any mobile device (smartphone or tablet), and sends a signal through the power cables to the electrodes of eSuit® causing impulses in the areas of the muscle groups.
With a unique design made in France, eBrain® has 10 channels that send the signal to 20 electrodes located on eSuit®, it can generate a signal from 4 to 200 Hz low frequency, with different waveforms and modulation according to work and rest times, giving the different training programs that 30 Minutes Fit® has elaborated.
eBrain® alone is not suitable for training, it works with eSuit® and the 30 Minutes Fit® App.
Technical specifications
- Materials: ABS and Polycarbonate
- Weight: 120 g
- Dimensions: 11.9 x 6.9 x 2.2 cm
- Battery type: Lithium
- Battery charging time: 30 min
- Battery capacity: 140 mAh
- Charging voltage: 5 V with USB-C connector
- Battery voltage: 3.7 V
- Maximum charging current: 1 A
- Maximum working current: Less than 1 A
- Output current: 6 to 100 µA
- Static current: Less than 30 Micro-amps (mA)
- Standby current: 40 µA
- Degree of strength: 100 Degrees
- Tuning Frequency: 4 to 200 Hz
- Pulse width range: 100 to 1,000 ms
- Discharge time: 10 to 60 s
- Interval time: 10 to 60 s
- Training time: 30 min
- Number of channels: 10
- Wave type: square, sine, trapezoidal, trapezoidal, triangular
Environmental specifications
- Operating temperature: 0 to 40 °C
- Transport temperature: 0 to 40 °C
- Storage temperature: 0 to 40 °C
- Relative humidity: 10 to 90%
- Atmospheric pressure: 500 to 1060 hPa
